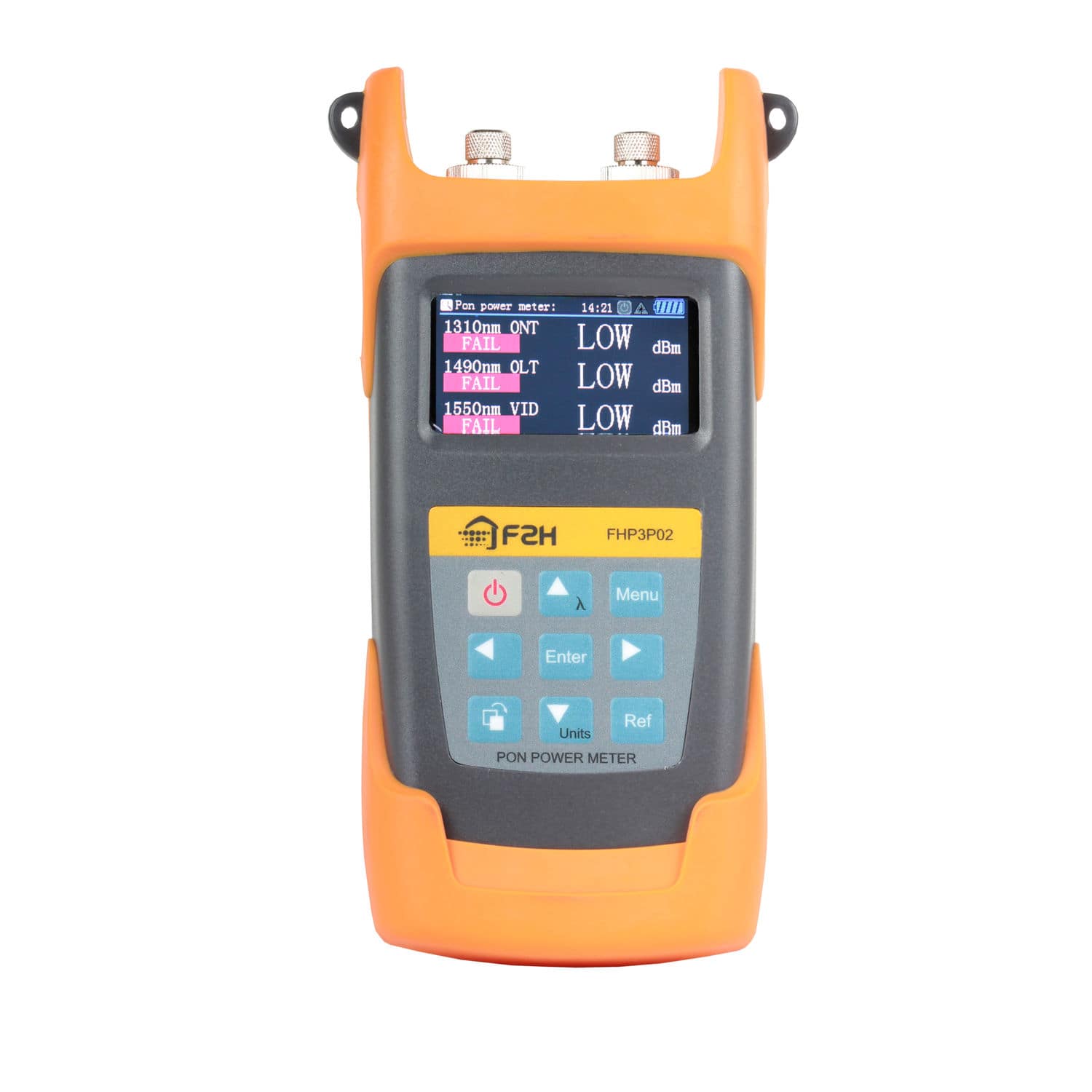

In stock PON Metru Grandway FHP3P02 cu port SC/APC
Specification:
| Model | FHP3P02 |
| 1310 upstream measurement | |
| Pass Zone(nm) | 1260nm～1360nm |
| Measurement Range(dBm) | -40dBm～+10dBm |
| Input power(max) | 15dBm |
| Isolation@1490/1550(dB) | >40dB |
| Burst mode measurement error | <±0.5dB |
| 1490 downstream measurement | |
| Pass Zone(nm) | 1470nm～1505nm |
| Measurement Range(dBm) | -40dBm～+12dBm |
| Input power(max) | 15dBm |
| Isolation@1310/1550(dB) | >40dB |
| 1550 downstream measurement | |
| Pass Zone(nm) | 1535nm～1570nm |
| Measurement Range(dBm) | -40dBm～+25dBm |
| Output power(max) | 25dBm |
| Isolation@（1310/1490nm） | >40dB |
| Measurement Accuracy | |
| Connatural uncertainty(dB) | ±0.5dB |
| Linearity(dB) | ±0.1dB |
| Passing through insertion Loss(dB) | <1.5dB |
| General Information | |
| Detector Type | InGaAs |
| Optical Connector | FC/SC/ST Interchangeable/2.5 universal adapter |
| Fiber Type | SM 9/125um |
| Measurement Unit | dB/dBm/xW |
| Resolution (dB) | 0.01dB |
| Operation Voltage(V) | DC 3.3V～5.5V |
| Power Supply | 3pc1.5V battery |
| Continuously Operation time (h) | 90h |
| Operation Temperature(℃) | -10℃～60℃ |
| Storage temperature(℃) | -25℃～70℃ |
| Weight(kg) | 423g |
| Standard Packages: | |
| FHP3P02 tester, User Manual, USB, Soft CD, 1.5VAA Battery*3 | |
